E2E Testing with TestCafé and Cucumber.js

Testing web applications from user perspective

Introduction

The need for e2e testing is getting more powerful each day. Development speed is evolving and the right way to keep riding that speed boost wave is to utilize e2e testing for your applications. Developers can push code and be sure that bugs which would usually be missed with manual regression testing are caught by the automated e2e scripts. That way we can release more often and be confident that the new code deployment will not break the application.

What is e2e Testing?

E2e testing is interpreted in many ways, but let’s lay down the rules, so we are all on the same page for the purpose of this blog post.

End-to-end testing is a testing type where you test your whole application, from “end-to-end”. It assures that all pieces of the application function and work together as expected. There is a great deal of e2e testing frameworks. We will try to accomplish our goal with “TestCafe” and “Cucumber.js”.

To make it more specific, we will test a web application from end-to-end the way the user would do it and that’s through the UI using TestCafe as the testing tool.

What is TestCafe?

TestCafe is a Node.js tool for automated e2e web testing. It is free and open source, easy to set up and it is working on all popular environments.

With TestCafe we can run tests on multiple browsers on multiple platforms, write stable tests in latest JS and TS versions and integrate our tests with CI pipelines (in our case a Jenkins pipeline).

TestCafe Main Features:

  • no web driver
  • uses web proxy to run tests – URL rewrite
  • automatic waiting for page loads
  • run test on remote browsers including mobile native
  • isolated testing – each time a browser is opened by TestCafe it behaves like an incognito window
  • write test in the language you write your application – JS, TS

By far, the biggest feature is that TestCafe does not use a web driver. With this feature, we avoid putting a huge load on our Operations support because there is no need to upgrade web drivers for multiple browsers after either the testing software updates or the browser itself. This way we only update the browser and TestCafe can continue working perfectly.

What is Cucumber.js?

Cucumber.js is a JavaScript implementation of Cucumber and it is used for running automated tests written in plain language. We combine it with TestCafe, so we use Cucumber.js to automate test executions written with TestCafe.

With Cucumber, we will write down our business flows and map those flows on actual test code.

The whole idea of mapping business flows came out of TDD (Test Drive Development) and eventually evolved into BDD (Behaviour Driven Development). The BDD frameworks basic concepts are focused around DSL languages using natural language constructs that can express the behaviour and outcomes of a certain piece of software. When the business problem is complex, that is the moment where BDD really shines.

The end result of BDD development is the delivery of working, tested software that matters.

Testing Stuff

Let’s get into the detailed testing setup to understand how Cucumber actually runs the test code.

Cucumber is basically a test runner. It loads the feature files prior to running the test code. In that process, Cucumber uses regex to map a certain feature step to the written test code. Only this way you can get proper test results in the end. In the report file, each feature step will then have either a failed, passed, pending or undefined flag set.

The actual flow

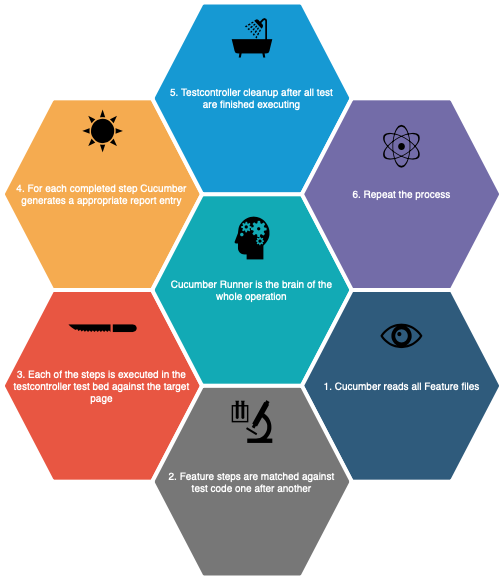

To help understand the Feature file structure check the image below:

Feature file structure

Let’s take a look at our feature file that we will use for this demo:

github:49d0ea9c6d42a70785abe9a775c0a166

The feature file describes a part of the Comsysto website. On line 2 we give a short description of the feature. Subsequently, we start detailing our scenarios but in a way that it is not too complicated. It should be easily readable and comprehensible for both developers and for business.

There is much detail, practice and finesse involved in creating good feature files. Use the 3 amigos principle if possible, writing features is all about collaboration!

Now that we have our feature file, let’s take a look at a code snippet that will be executed for the first scenario:

github:e800414208b65fa820b266e2792d00ee

As we are running our tests, Cucumber is automatically doing all the mapping for us.

If you wonder what the “page” object is, that is a Selector object that we load from our custom library. That way you can have all your page object selectors on one place and save yourself a bunch of code.

github:95701b9f5592f780f8444a498b3be46e

How to run the tests from local workstation?

To get more familiar with what happens in the Jenkins pipeline, let’s run the tests directly on our workstation first.

Will not work for Windows, please user Mac or Linux

First download the repository:

shell:git clone https://github.com/comsysto/testcafecucumberdemo

Then install dependencies.

shell:npm install
Be sure to have BOTH Chrome and Firefox browser installed

and then run the tests

shell:npm run e2e

Right after running the command, TestCafe will bring up a new browser window and start executing the tests.

Starting Safari browser for TestCafe test

After the testing is finished, you will see a small and not so pretty report in the command line:

github:fdbc065ec4a862e95625a1f7bc4034f5

The actual error stack trace is located above the summary so you can see in more detail what exactly happened if a certain test failed.

If you have feature files that are missing a certain step definition, Cucumber will create the code stubs for you so you only need to implement the test logic and do not have to fiddle around much with preparing everything. Try it out by commenting out a Given, When or Then block from the test code file.

Let’s see how it looks on a simple example:

Feature file:

github:b508bda800ef1ff797424827eadfde57

Generated stubs after running Cucumber

github:298542d601d2a1144dfbb234d9e5ab9d

Getting Started with the Demo using Jenkins

This project is built here:

so, you can take a look at the Pipeline without downloading or installing anything.

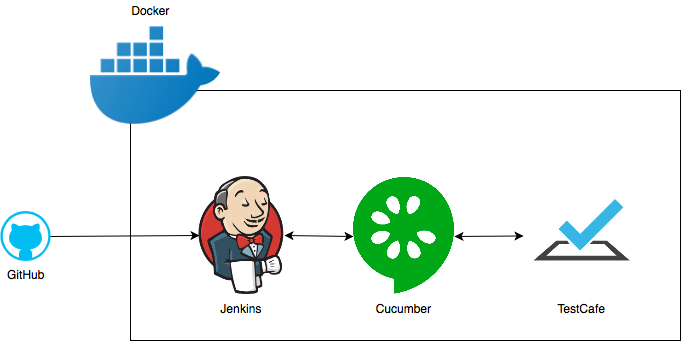

How does it all work?

What's connected with what?

We run everything inside Docker so to be able to run the demo yourself you need to have Docker daemon running. No Docker? Get it here

Jenkins is built using the Jenkins LTS Docker Image. On top of that, we install Node and NPM so we can run JS helper scripts for parsing/updating data and generating HTML reports. More configuration is done using Groovy; we copy various configurations, install plugins, we set the default user for accessing Jenkins GUI, and we also get rid of stuff like the CSP rules that block us from viewing our HTML reports.

Jenkins is not triggered by a Git Hook, instead Jenkins checks for new commits on GitHub. Not the best practice because we use resources on our master node every couple of minutes to scan for changes on GitHub but this way the project is made to run on each and every machine without the need to do any initial configuration.

Avoid running resource intensive stuff on your Jenkins master node, use slaves.

Jenkins has this project already built in and ready to execute the e2e tests and produce HTML reports. You can add more job configurations and include them by default here.

Jenkins will be setup up with all necessary plugins installed. You can update the list of plugins here.

You can also use this file to update your plugins. Just bump the version in the file and re-build the Docker Image.

How to run the whole setup on your local workstation?

To get to this point where Jenkins is set up and running the way we want it to run, we will simply install necessary npm modules

shell:npm install

and after that we will build the Docker images:

shell:npm run buildContainers

With the previous command, we actually run 2 npm scripts:

shell:npm run buildBrowsers && npm run buildJenkins

This command will build 2 containers. One being Jenkins and the other one being the container on which the test are actually executed (the Slave).

As you can see, many useful commands have been saved for later use as npm scripts. Check them out in the package.json file

The browsers container also includes Node and NPM as well as 2 browsers, Chrome and Firefox. When the Jenkins Pipeline is triggered, the tests run in parallel in both browsers. That saves us time in the long run because we do not need to wait for 1 pipeline step to finish so the other one can start.

If you implement parallel execution in your systems, be careful with scenarios where you change data! For example, updating login password.

Details about the containers can be found in the Dockerfile:

Jenkins Dockerfile

Browsers Dockerfile

Most of the code is well commented so you can use it as documentation.

How to start the Jenkins Container?

shell:npm run startJenkins

This npm script will run the following command:

shell:_pwd="$(pwd)" && docker run -d -p 8080:8080 -p 50000:50000 --env JAVA_OPTS="-Dorg.jenkinsci.plugins.durabletask.BourneShellScript.HEARTBEAT_CHECK_INTERVAL=30" -v $_pwd/jenkins_home:/var/jenkins_home -v /var/run/docker.sock:/var/run/docker.sock jenkinstescafe:latest

and start the Jenkins server in the background.

Let’s just explain this command in more detail because it got upgraded along the investigation.

First, we store the current working directory, in order to use that value for setting the correct path for the jenkins_home parameter. The tests take a long time to execute and Jenkins by default will think that the Cucumber process is hanging and will break the build. In our case we set the heart beat check option to a custom value to bypass the problem.

We also pass our local Docker socket to the container so the container itself can spawn new containers on the host machine. Since the Jenkins slave is also a Docker container this setup came in quite handy.

How to stop Jenkins Container?

If you want to stop the Jenkins container execute the following npm script:

shell:npm run stopJenkins

All the changes that you may have made through the Jenkins GUI will be saved (all files that are saved in the Jenkins home folder).

What to do after you start Jenkins?

Access it on http://localhost:8080

with default username admin and password admin.

You can change the default admin password later through the Jenkins admin console or in the docker/jenkins/bin/security.groovy configuration file. Don’t forget to build the Docker Image after you make a change.

Click on the testcafe-demo pipeline and start the build by clicking Build Now.

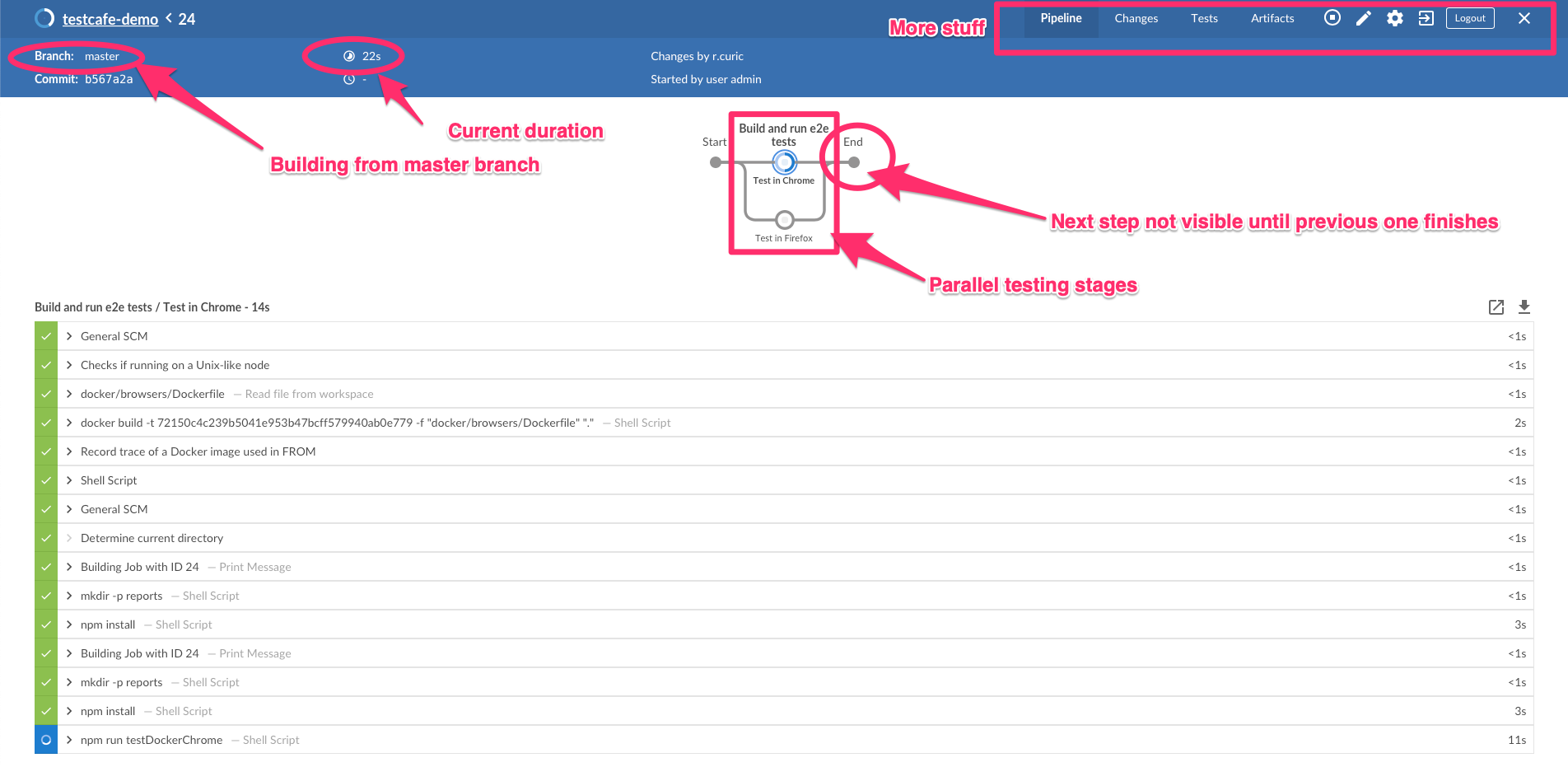

As the tests run you can view the details in the Blue Ocean dashboard.

And now for the grand finale, all what we have been waiting for. The Test Report.

SpongeBob Means Business

The final report is generated using a .js library. Experiments with injecting custom metadata into the .json report generated by Cucumber went well, so we have more information prior to generating the HTML report. There is definitely more room for improvement in that direction like attaching screenshots, dynamically getting browser information…

It is also possible to just use the generic Cucumber HTML plugin in Jenkins, but this report is more eye catching and includes more data from the start (like OS and browser on which the tests were executed).

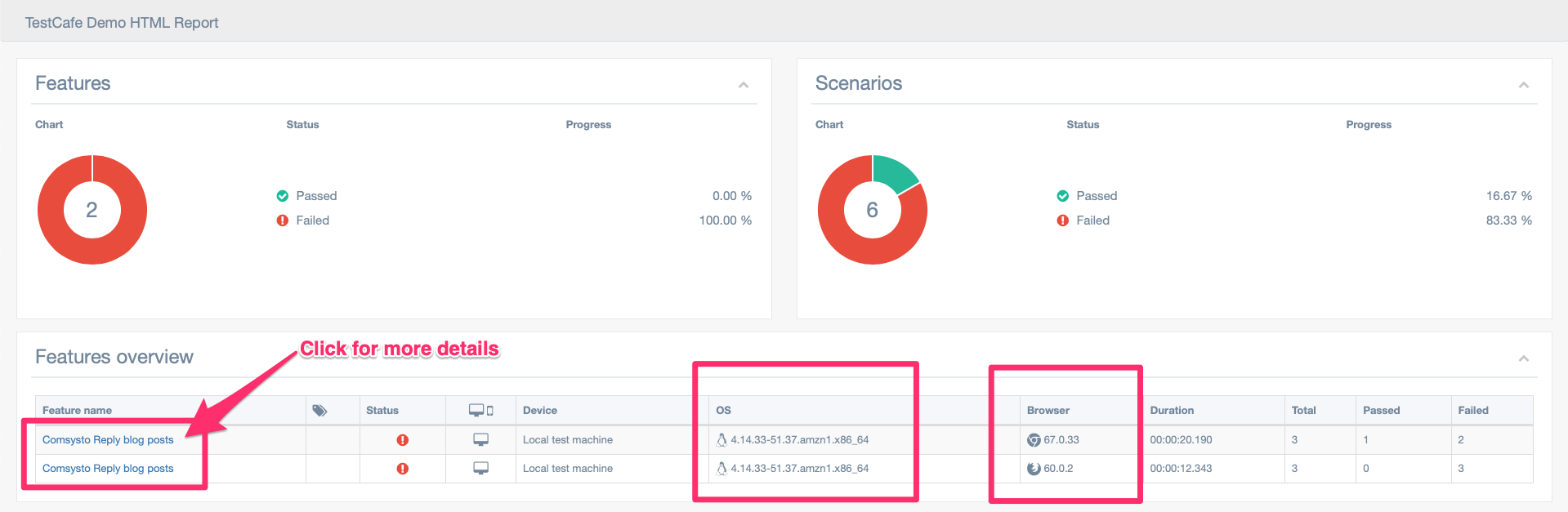

HTML report

Builds like these can be set as downstream builds, so they trigger after your integration tests have finished executing or after the final build artifact has been deployed to pre-production environment.

Since the start of writing, the Blog page changed and tests that were passing eventually failed, therefore it became a nice little addition to the blog. Did the requirements change, developers forgot to update tests after code change, or we have a bug at hand? You be the judge.

Verdict

By implementing e2e testing we make our applications more stable and less prone to defects caused by implementing new code.

We have proven that it is possible to implement solid e2e testing practices by using TestCafe and Cucumber with automation software like Jenkins. Leveraging Docker gives us more flexibility for Jenkins and Jenkins slave orchestration which conserves resources/time
